Saberproject Series Generation 2 Chassis Core

The Saberproject Series Generation 2 Chassis Core fits into all hlts of the Saberproject Series Generation 2:

• Tiro Lightside
• Tiro Darkside
• Patronus Lightside
• Patronus Darkside
• Zephyr Lightside
• Zephyr Darkside
• Legatus
• Anemos

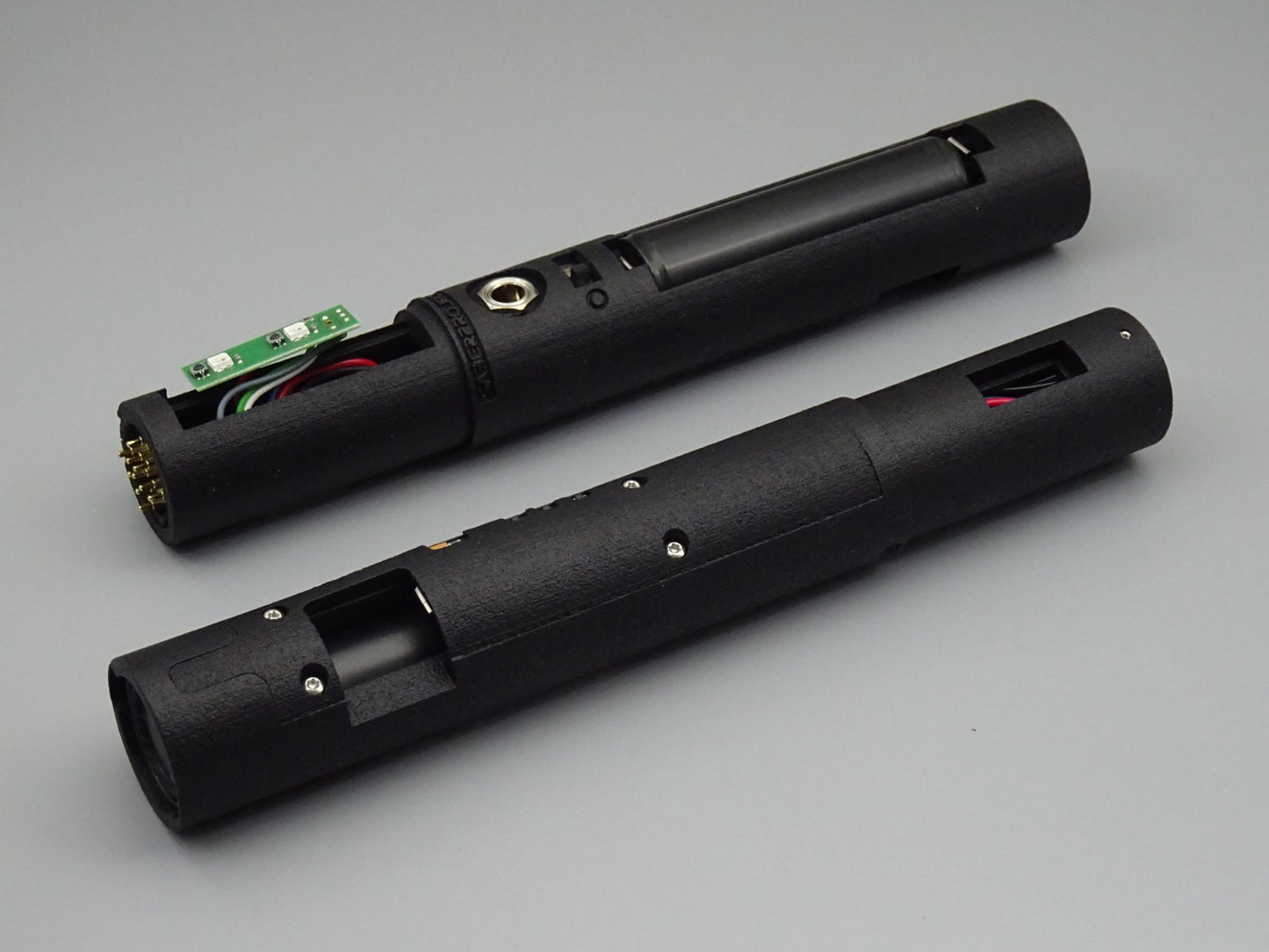

The 3D-printed chassis ensures perfect support for the internal components, making the saber fully battle-ready.

A Plecter Labs Crystal Focus Saber Core 10 is installed in the chassis. A Neopixel blade or a NeoCree adapter can be operated with the Neopixel Blade Side Adapter. The 3.7 V 18650 Keeppower Li-ion battery is charged via a 2.1 mm charging socket. It is also possible to replace the battery.

Specifications at a glance:

• Plecter Labs Crystal Focus Saber Core 10
• 3D-printed Chassis
• Saberproject Shop Neopixel Blade Side Adapter
• PCB für 2 x Pixel-illuminated switches
• 3,7 V 18650 Keeppower 3120 mAh Li-Ionen rechargeable battery
• 22 mm 3 W speaker
• Kill Switch
• 2,1 mm Recharge Port

To adapt the Core to one of the sabers, three 3D-printed parts specific to each saber are required, which can be ordered with the respective hilt. You can see how the chassis is installed in the Generation 2 sabers in the video.
