Experience from the stage
Our lightsabers are a combination of the experience of more than 17 years of stage shows and almost 15 years of lightsaber building at the highest level. The result is a simple yet attractive design with maximum grip and equipped with the best technology available on the market.

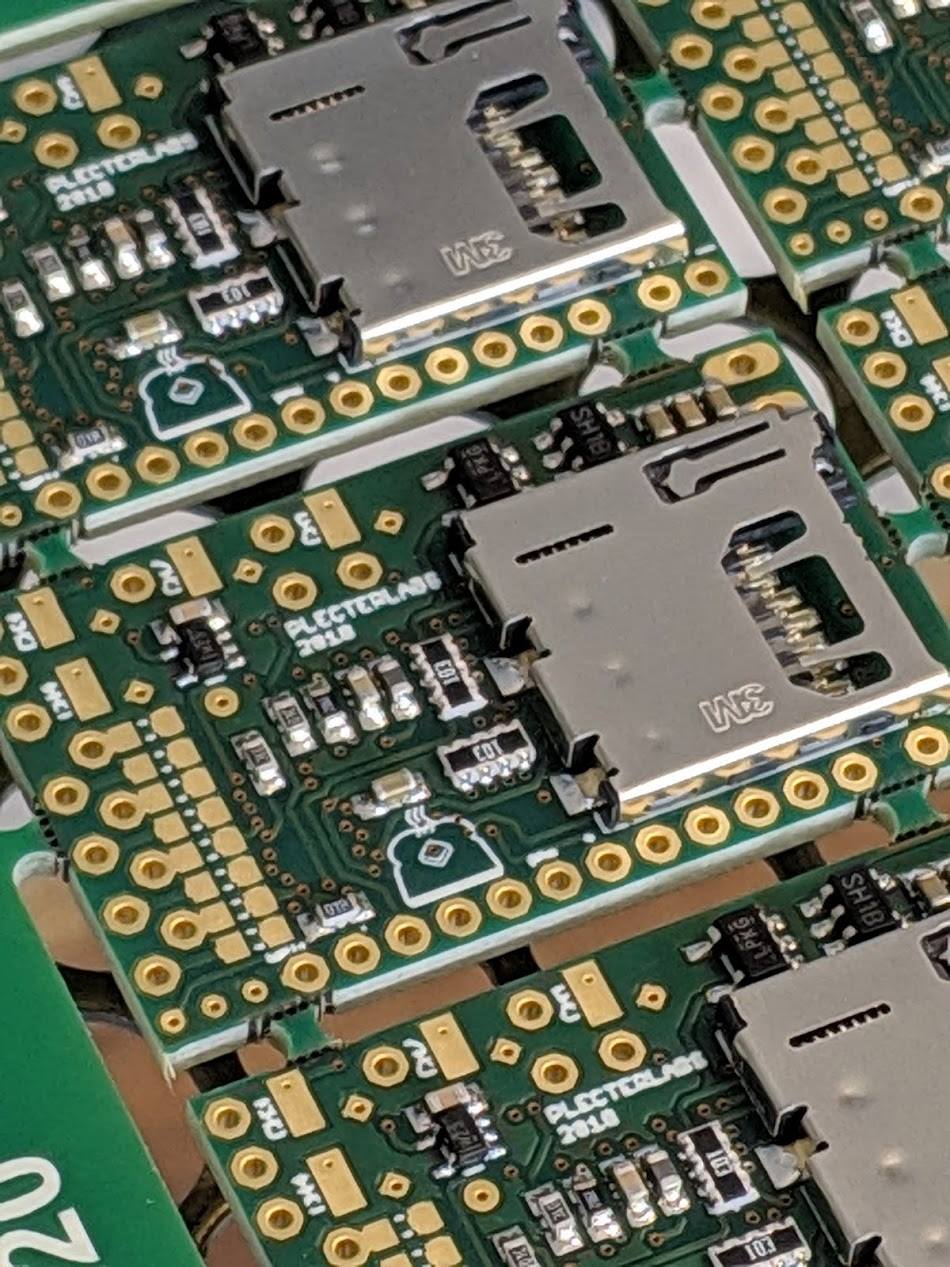

Crystal Focus Saber Core 10 Lightsaber Soundboard
Sound board

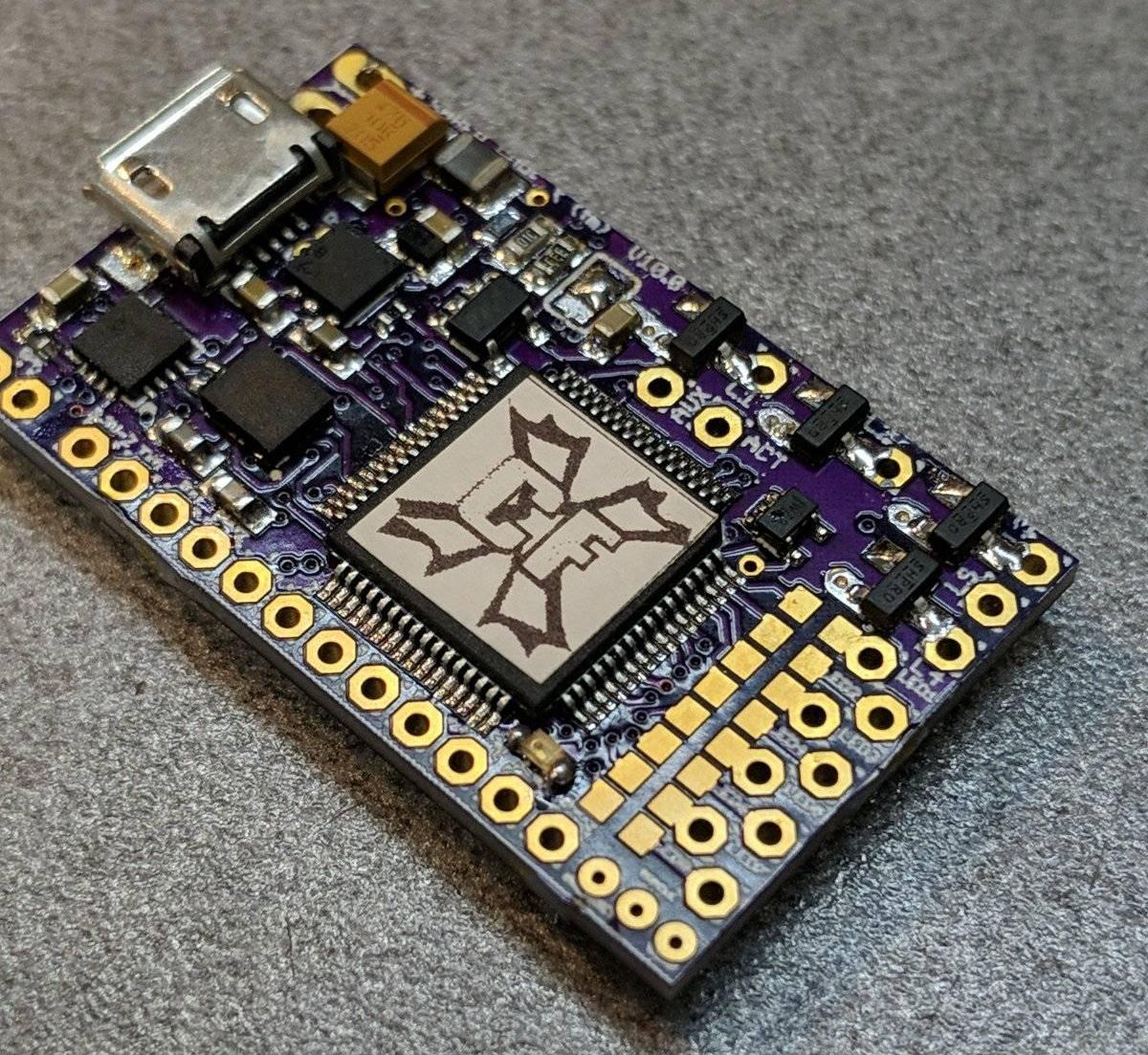

The soundboard offered is the Crystal Focus Saber Core 10 (CF 10 or CFX) from Plecter Labs, the best and most user-friendly board on the market. With this it is possible to adapt the lightsaber to your own needs. For example, the movement sensitivity, the color profiles of the blade or the volume can be changed. It is also possible to add additional sounds to the board.
Important: You can do all of this, but you don't have to. The sword comes ready to use and preset, so no modifications are necessary to get started right away.
There is a selection of sound fonts on the board. A sound font (or sound bank) is a set of matching sounds that represent a specific sword. Some fonts are based on the characters' swords.

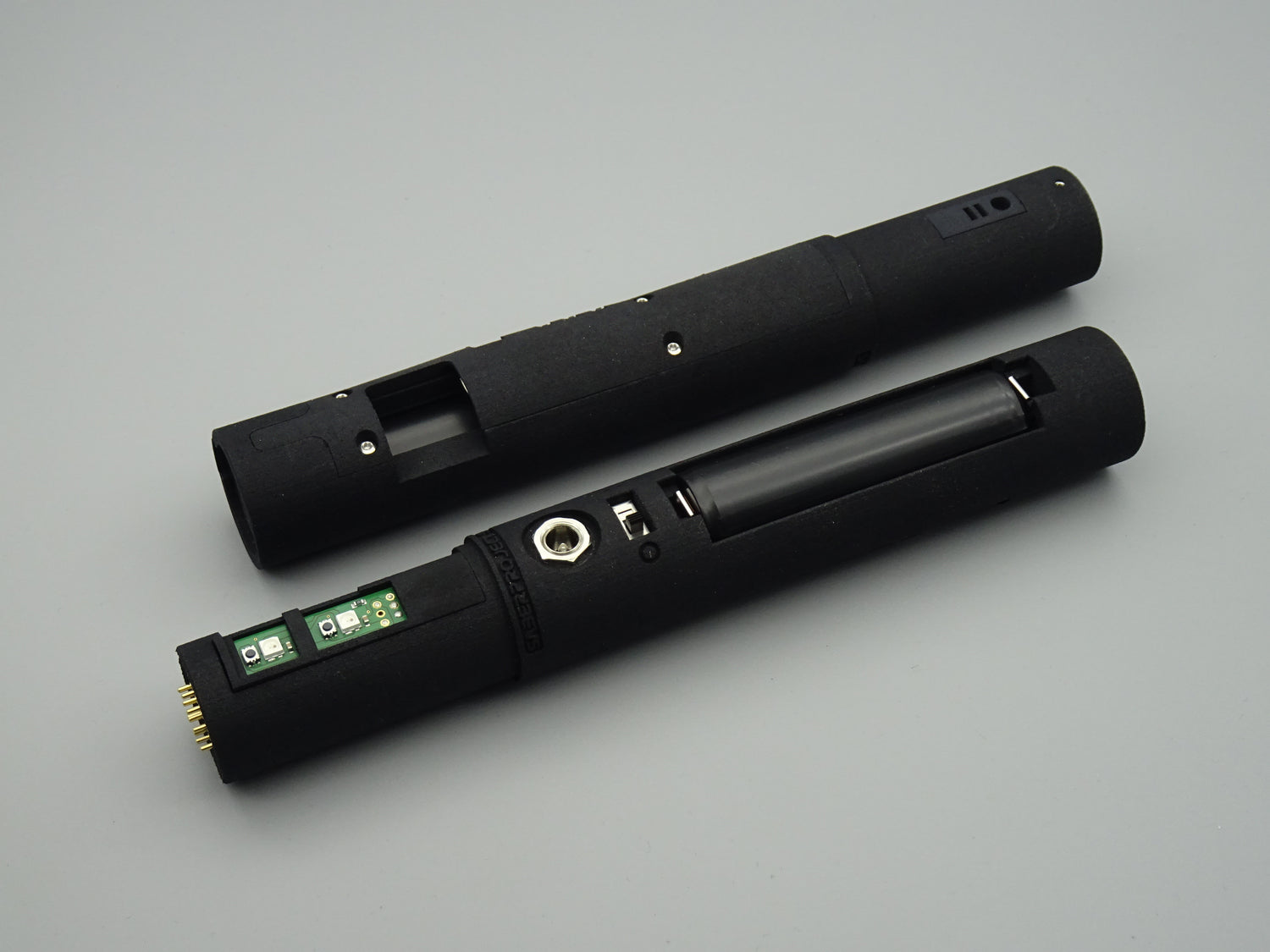

3D printed chassis
chassis
The 3D printed chassis ensures the perfect hold of the internal components, making the sword fully suitable for combat. The lightsaber is charged via a 2.1 mm charging socket. It is also possible to replace the battery. The blade is removable and is fixed in the handle by a threaded pin.
Smooth swing with CFX
Perfect motion detection
Some of these sound fonts support Smoothswing . The swing sounds are not played from pre-made sound files, but instead the sound is generated in real time .
A large selection of sound fonts is available at http://www.saberfont.com/ . In order for the fonts to be used in our lightsabers, they must be optimized for the Plecter Labs CFX.
You can find the manual for the board here: Manual CFX
You can find operating instructions for our swords here .

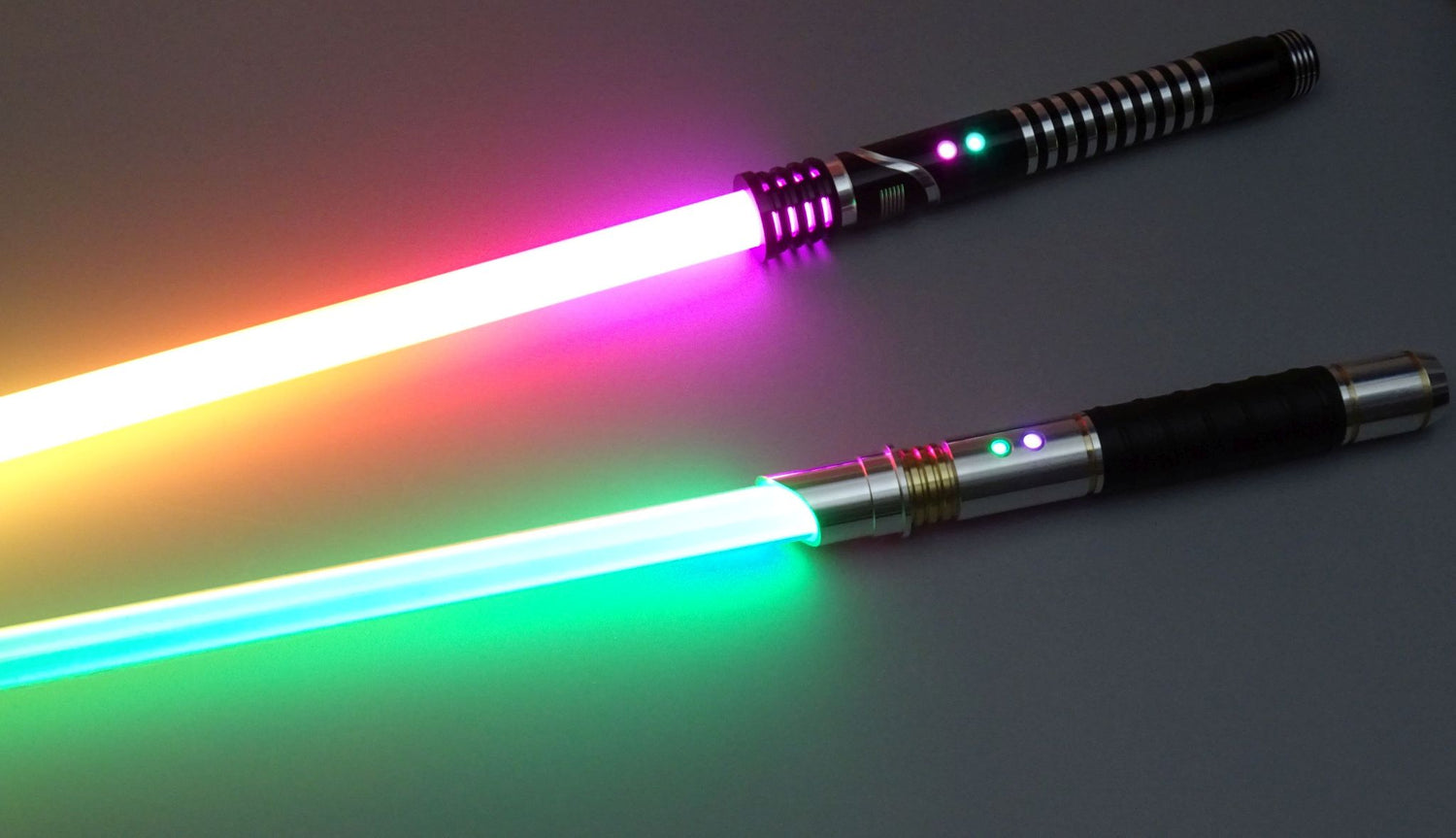

Neopixel or Baselit?
Effects or combat capability?
A circuit board with spring contact pins is installed in the emitter of the lightsaber
a) a pixel blade
b) a NeoCree adapter with a high power LED-illuminated blade
can be operated.

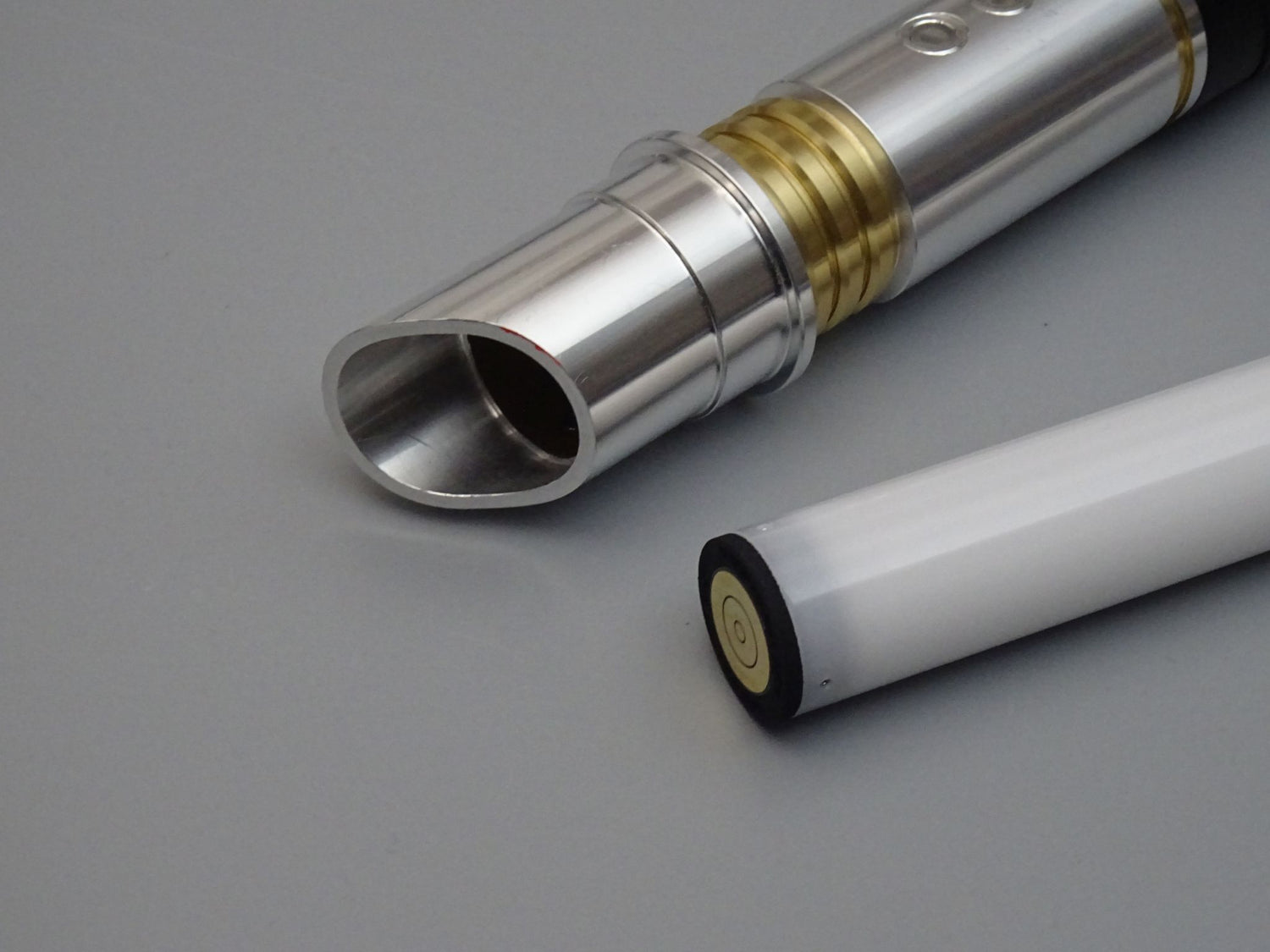

Pixel operation
Pixel blades contain a circuit board equipped on both sides with individually controllable RGB LEDs. This allows you to create a wide variety of effects that are not possible by illuminating a blade with a high-power LED (HPLED). The characteristic retraction and extension effect, localized flash on clashes or lockups as well as different blade profiles can be displayed in this way. Furthermore, the brightness is significantly greater than high-power LED-illuminated lightsabers.
The pixel blade is equipped with a KR Sabers Pixel Stick V2.
Attention: Due to the structure of the blade and the circuit board it contains, the blade is only suitable for combat to a limited extent. We therefore expressly exclude battle damage from the warranty and guarantee.

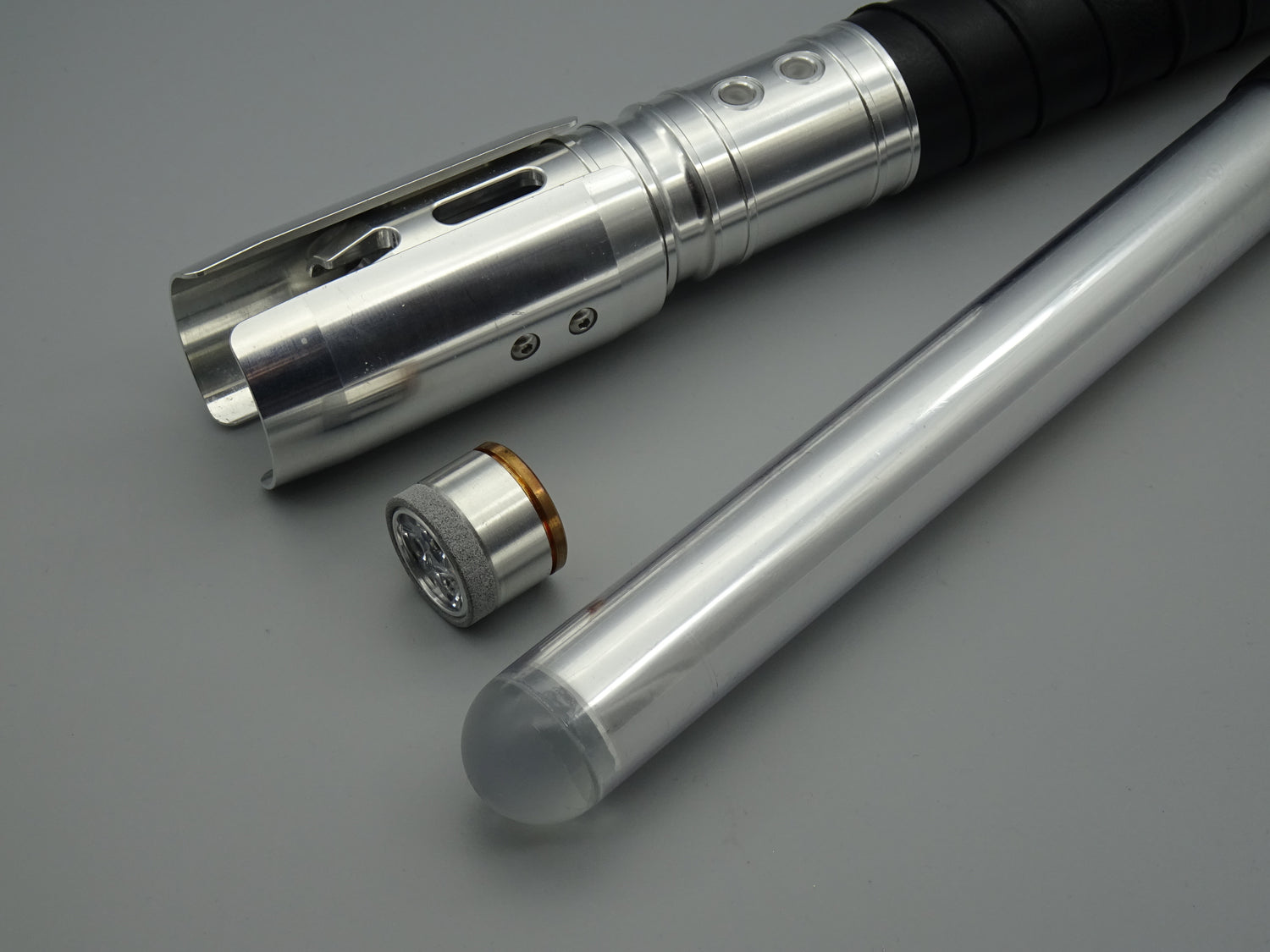

Lightsaber with NeoCree adapter
NeoCree operation
In order to make the lightsaber suitable for combat, a corresponding blade can be illuminated with a NeoCree adapter.
The NeoCree adapter contains a high-power LED with RGB configuration, which reproduces the behavior of the first pixel in the pixel blade. Since the HPLED-illuminated blade (unlike the pixel blade) does not contain any electronics, the lightsaber is suitable for combat.

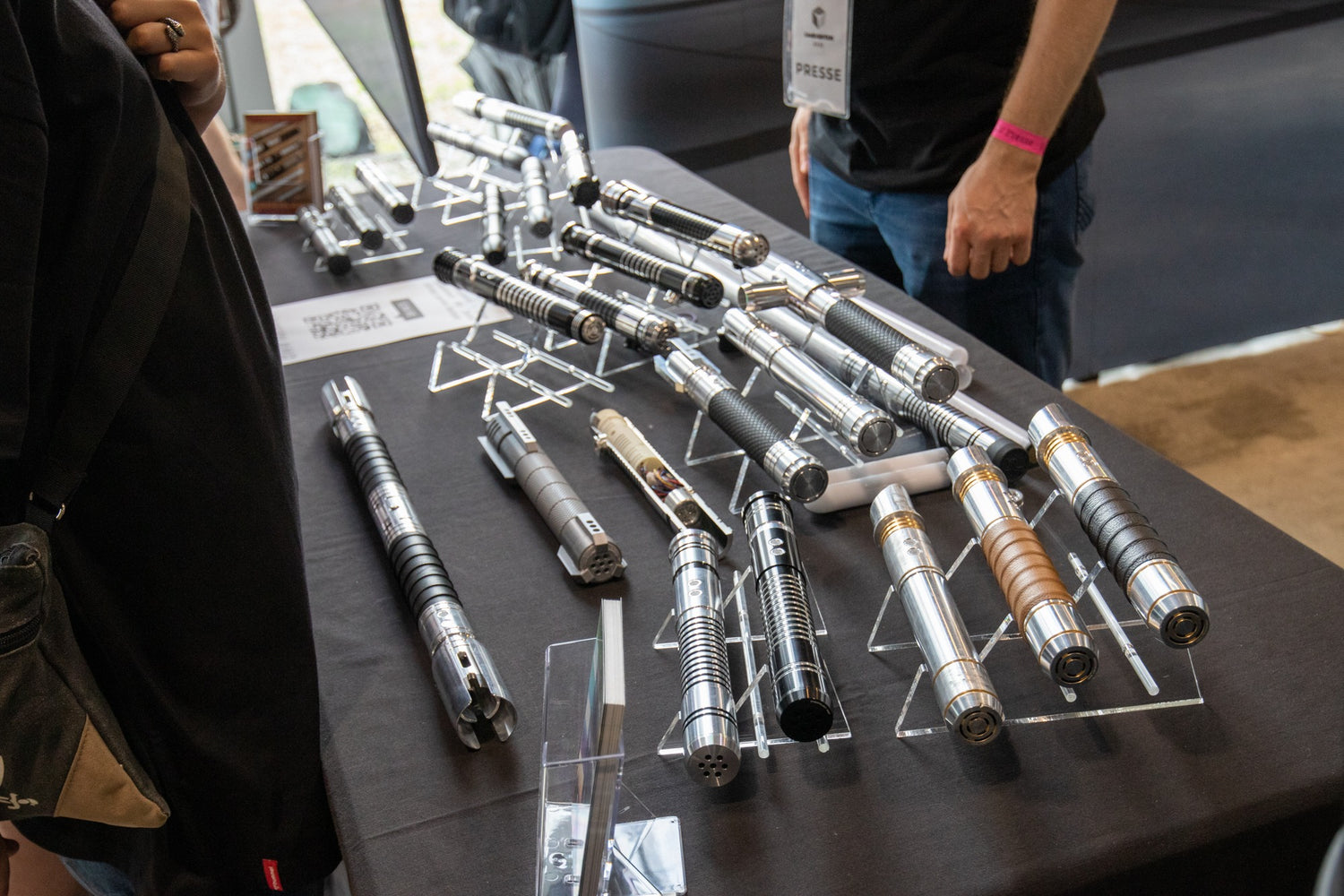

Saberproject Shop lightsabers
Specifications at a glance
- partially anodized aluminum handle
- Plecter Labs Crystal Focus Saber Core 10
- 3D printed chassis
- Shtok Custom Worx Neopixel Blade Side Adapter V3
- 2 x Pixel Illuminated Switches
- 3.7V 18650 Keeppower 3120mAh Li-ion battery
- 22mm 3W Speaker
- Kill switch
- 2.1mm recharge port
A charger, a USB cable and an Allen key suitable for the blade mounting screw are included in the scope of delivery.
Instructional video
